2025 Jeep® Wagoneer S near Long Island, NY
The 2025 Jeep® Wagoneer S is designed as a four-door sport-utility vehicle built on the STLA-Large unibody platform with a focus on electric propulsion and all-wheel-drive capability. This model presents a combination of significant electric power, refined mechanical design, and technical efficiency suited for diverse driving demands. The specifications emphasize practical engineering choices that support performance, range, and safety without unnecessary complexity.
Electrified Power and Performance That Command Attention
The 2025 Jeep® Wagoneer S uses a 400-volt, 100.5-kWh lithium-ion battery pack composed of nickel manganese cobalt cells. The battery pack and all associated electrical systems, including the wiring between the battery and motors, are fully sealed and waterproofed to ensure durability. The estimated range on a single charge is 294 miles, a figure supported by efficient energy management and advanced thermal control.
Charging options include Level 1 (120V), which requires approximately 32 hours for a full recharge from 20 to 80 percent capacity. Level 2 (240V) charging reduces the recharge time to roughly six hours. The vehicle supports DC fast charging, capable of restoring 80 percent battery capacity in about 23 minutes. An integrated dual charging module with an onboard charging system enables an estimated 100 miles of range to be added in 10 minutes on public DC fast chargers.
Performance varies slightly between trims. The Launch Edition delivers 600 horsepower and 617 pound-feet of torque, producing a 0 to 60 mph acceleration time of 3.4 seconds. The Limited trim provides 500 horsepower and 524 pound-feet of torque, achieving acceleration in just under four seconds. The top speed for both models is electronically limited to 124 mph.
The vehicle’s power delivery is managed through dual electric drive motors mounted on the front and rear axles. The Launch Edition uses two 250kW/400V motors, one on each axle. The Limited model employs a 150kW front motor and a 250kW rear motor. This setup supports the full-time active four-wheel-drive system, which dynamically distributes torque between front and rear wheels across multiple drive modes, including Auto, Sport, Eco, Snow, and Sand.
Precision Engineering in Chassis and Suspension
The 2025 Jeep® Wagoneer S features a four-wheel-drive layout supported by a single-speed transfer case. The design omits a traditional low-range gearing option but compensates with the adaptability of torque distribution for varied conditions. The front and rear axles are equipped with open differentials and maintain an axle ratio of 11:1.
Suspension components include a front MacPherson® strut system and a rear integral link setup. These components work together to deliver ride comfort while maintaining vehicle stability and control. The chassis dimensions include a wheelbase of 113 inches, contributing to both interior space and handling characteristics.
The electric power steering uses a rack-and-pinion configuration with an overall steering ratio of 15.1. The steering system requires 2.54 turns lock-to-lock and offers a curb-to-curb turning diameter of 40 feet.
Braking System Built for Control and Confidence
Braking is managed by hydraulic disc brakes with vented rotors, both front and rear. The front brakes measure 13.9 inches in diameter and are equipped with dual-piston floating calipers for improved heat dissipation and braking force. Rear brakes also use 13.9-inch vented discs but with single-piston floating calipers that integrate an electronic parking brake system.
The total swept braking area is 196 square inches in the front and 162 square inches in the rear. This braking system balances stopping power with modulation, essential for a vehicle with a curb weight of approximately 5,667 pounds and a gross vehicle weight rating (GVWR) of 6,700 pounds.
Sleek Dimensions with Aerodynamic Efficiency
The 2025 Jeep® Wagoneer S measures 192.4 inches in overall length, 83.6 inches in width including mirrors, and 64.8 inches in height at the roof rail. The body width itself is 74.8 inches. Ground clearance is specified at 6.4 inches, supporting the vehicle’s capability to navigate uneven terrain.
Approach, departure, and breakover angles are 19.2 degrees, 23.4 degrees, and 14 degrees, respectively. These angles indicate the vehicle’s suitability for off-road excursions within the limits of its electric drivetrain and chassis design.
Aerodynamically, the vehicle achieves a drag coefficient of 0.29 and a frontal area of 29.1 square feet. The effective aerodynamic cross-section is 8.67 square feet, a factor that contributes to overall energy efficiency and driving range.

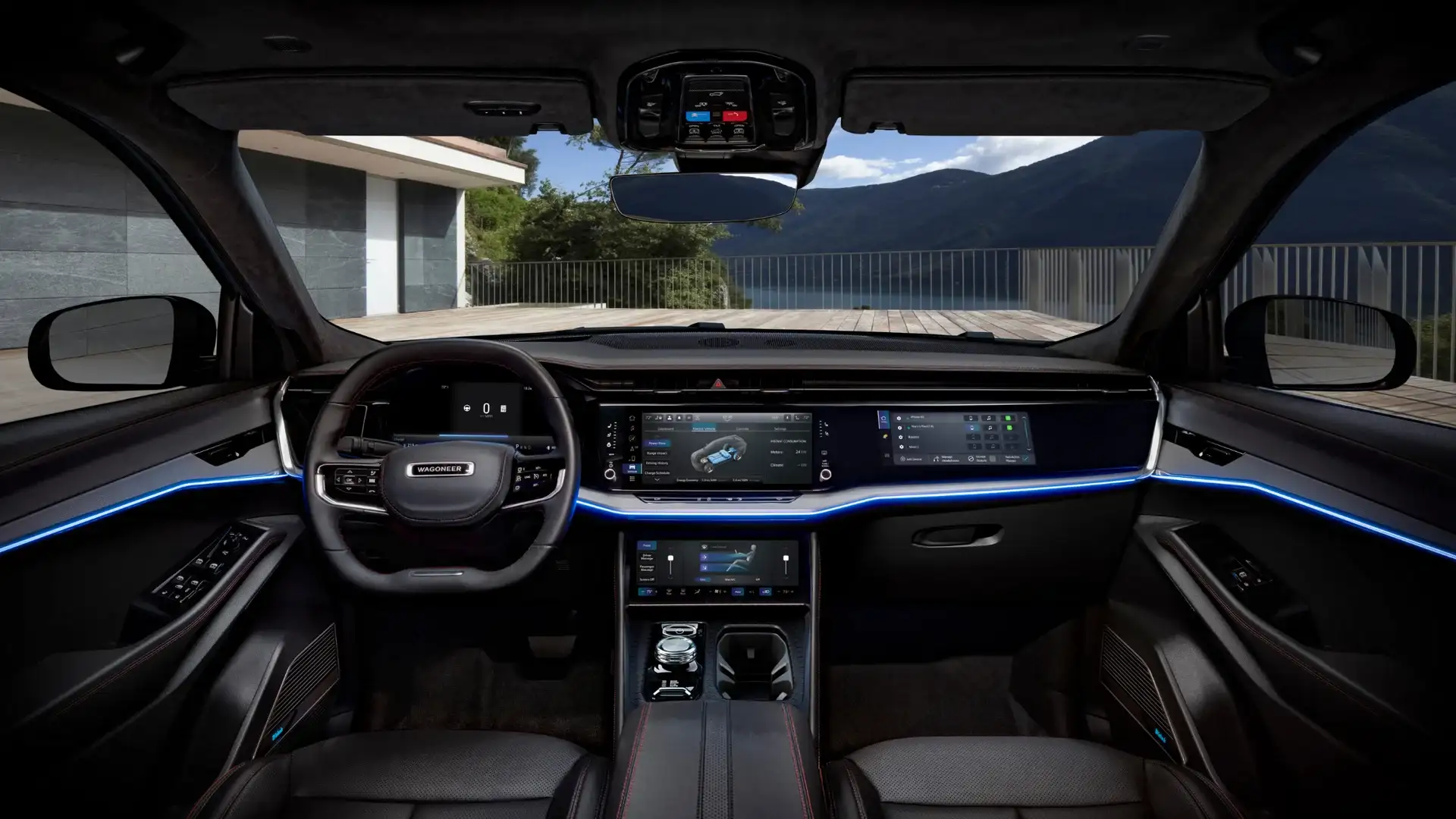

Spacious Interior Designed for Practicality
The interior accommodates passengers across three rows with a total passenger volume of 99.5 cubic feet. The combined volume of passenger and cargo space reaches 130.1 cubic feet, with 61 cubic feet of cargo behind the first row and 30.6 cubic feet behind the second row.
Front seat occupants benefit from 38 inches of headroom and 41.3 inches of legroom, with a seat travel range of 8.7 inches for adjustment. Shoulder width measures 57.4 inches, and hip room is 55.4 inches. The second row provides 37.4 inches of headroom and 38 inches of legroom. Shoulder and hip measurements for this row are 57.6 inches and 54.4 inches, respectively, ensuring adequate comfort.
A front trunk, or frunk, provides an additional 3 cubic feet of storage space, increasing the utility of the electric vehicle layout.
Wheels, Tires, and Towing: Built to Handle Demands
Standard wheels on the Launch Edition are fully painted gloss black and measure 20 by 8.5 inches. The Limited trim offers diamond-cut painted aluminum wheels of the same size, with an optional gloss black finish available through the Obsidian Package. Tires for all trims are Falken All-Season LRR with a size of 235/50R20XL.
The 2025 Jeep® Wagoneer S supports a maximum trailer towing capacity of 3,500 pounds. The driveline’s 11:1 axle ratio is designed to balance performance and towing capability without compromising electric range or vehicle handling.
Advanced Cooling for Reliable Operation
The vehicle cooling module integrates an OHX condenser, a liquid thermal (LT) radiator, and an electric fan assembly. This system is designed to regulate temperatures across the battery, electric motors, and other critical components, maintaining operational stability and efficiency during varied driving conditions.
Intelligent Drive Systems for Stability and Traction
The full-time active four-wheel-drive system of the 2025 Jeep® Wagoneer S uses variable torque splitting that adjusts automatically depending on the selected driving mode and road conditions. This approach enhances traction control and vehicle stability.
The electric power steering and hydraulic braking systems operate in coordination with these drive modes to provide consistent handling and driver feedback. The absence of a low-range transfer case is offset by torque vectoring and adaptive systems that ensure adequate control for light off-road and adverse weather use.
Visit Security Dodge Chrysler Jeep® Ram near Long Island, NY
The 2025 Jeep® Wagoneer S combines an all-electric powertrain with full-time all-wheel drive and adaptive torque control for responsive, capable performance. With up to 600 horsepower, a nearly 300-mile range, and advanced braking and cooling systems, it delivers both strength and stability. Inside, its spacious layout supports everyday practicality while maintaining the focus on driver comfort and efficiency. To see how these features come together on the road, visit Security Dodge Chrysler Jeep® Ram near Long Island, NY, and schedule your test drive today.
